The Celestial node¶

Celestial is the planet: a Node3D you drop in a scene, give a radius and a builder, and it renders an adaptive-LOD spherical terrain. Every frame it picks the chunks the camera can actually see and realizes the new ones on the GPU — see architecture.md if you want to know how.

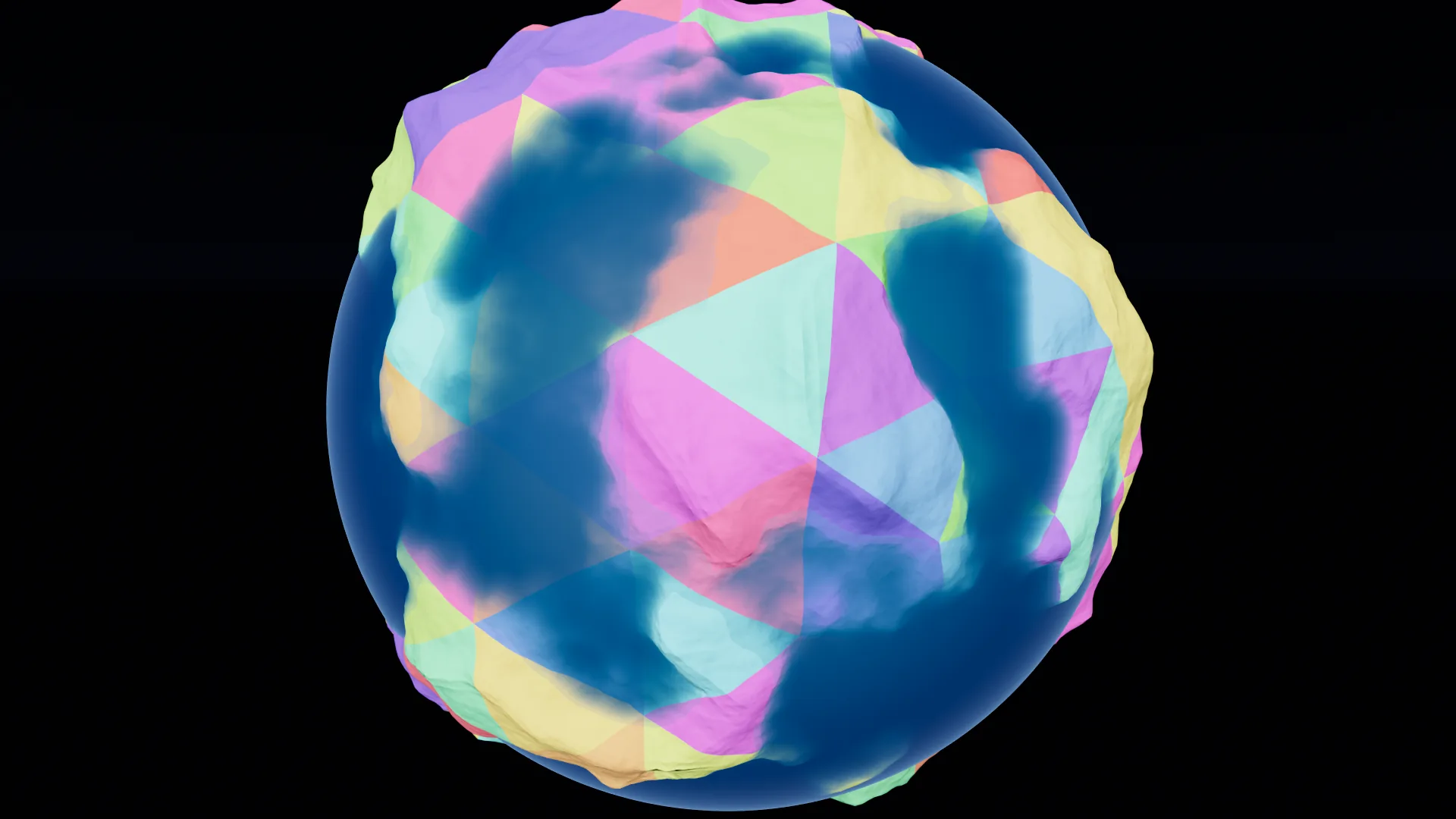

lod_colors = true tints each chunk by its LOD level, which is the fastest way to see the cut the CPU selected: fine near the camera, coarse toward the limb.

This page is about the knobs on the node: what they do, what they cost, and how to read the numbers back out.

Properties¶

A fresh Celestial gives itself a CesGPUNoiseExample builder the first time it enters the tree, so you never start at a blank sphere. Clearing the slot afterwards is respected — it won't be re-added.

Performance¶

Turn V-Sync off before you measure anything¶

Project Settings → Display → Window → V-Sync Mode = Disabled. With V-Sync on, the framerate is pinned to your monitor and the numbers tell you nothing: a setting that costs 2 ms and one that costs 12 ms both read as 60 fps, right up until the point where the plugin suddenly looks slow. Every claim below is about frame time, which you can only see with the cap off.

The cost knobs¶

• screen_error — the master dial. It sets how much geometric error you tolerate on screen, so it decides how many chunks are in the cut, which decides how much realizing, baking, and drawing happens. Lower = sharper terrain, more chunks, more bakes, more VRAM pressure. This is the first thing to move, in either direction. (The committed example scene runs 0.05, looser than the 0.02 default.)
• tile_res — surface (colour + normal) detail per chunk, independent of the geometry grid. It is the main VRAM driver: each resident chunk costs tile_res² × 16 B of atlas on top of its geometry, so raising tile_res from 64 to 256 is a 16× increase in per-chunk texture cost and shrinks how many chunks fit in vram_budget_gib. It also dominates bake time, and on a CPU builder it is the size of the array you have to fill per chunk.
• chunk_res — triangles per chunk (chunk_res²). Cheap compared to tile_res, but it multiplies the drawn triangle count directly.
• max_depth — the floor under screen_error. Lowering it caps how fine terrain can ever get (and how close you can stand to it before it looks flat); it does not otherwise change per-frame cost.
• vram_budget_gib — the residency ceiling. Slots = budget ÷ per-chunk bytes. Too small and chunks are evicted and re-baked as you turn around; too large and you are simply reserving VRAM you don't need. resident_count() vs effective_budget() tells you which side you're on.
• max_bakes_per_frame — spike control. Teleporting, or whipping the camera around, makes hundreds of chunks newly visible at once; this caps how many get realized and baked in a single frame and lets the rest arrive over the next few. Lower it if you see a hitch on fast camera moves; raise it if terrain visibly fills in too slowly.
• geomorph — smooth LOD transitions. It costs a per-frame instance-buffer upload while the camera moves (the cached geometry is untouched). Turning it off removes that upload and reintroduces popping.
• horizon_cull — leave it on. It removes the far hemisphere, and near the ground the horizon is close, so it also drops distant chunks you can't see.

GPU builders are much faster than CPU builders¶

A GPU builder (the built-in noise, or your own .glsl) evaluates terrain on thousands of GPU threads with essentially no CPU cost. A GDScript CPU builder bakes on the main thread, one call per chunk — the loop is real GDScript, so at a high tile_res it will stall frames. If you need CPU-side terrain:

• Prefer the async bake API (_bake_requested + submit_chunk, see custom_terrain_cpu_gdscript.md). The planet hands you chunks and never waits; a chunk without a surface yet is covered by a coarser ancestor. A slow bake then costs detail, not framerate.
• For real throughput, write your own Rust GDExtension builder — you get threads, no GDScript interpreter, and no per-chunk marshalling.

This section is a sketch; the documentation will be expanded with proper measurements and numbers in a future release.

Reading the numbers back out¶

Celestial exposes its own stats to GDScript, which is how the example scene's HUD is built (scenes/celestial_v5.tscn, driven by scripts/quadtree_chunks.gd):

@onready var planet: Celestial = $Celestial

func _process(_d: float) -> void:
    $HUD.text = "tris %d   resident %d/%d   realize %d\n%s" % [
        planet.triangle_count(),
        planet.resident_count(), planet.effective_budget(),
        planet.realize_count(),
        planet.gpu_report(),
    ]

For debugging shape rather than speed, lod_colors makes the chunk tiling visible (useful for seeing where LOD is spending its budget) and debug_log prints the plugin's own log lines.

Putting an object on the surface¶

The ground is not at radius — terrain displaces it, and on a mountain that can be a long way out. ground_radius_at(dir) gives you the rendered ground radius along a unit direction from the planet centre:

func place_on_surface(node: Node3D, dir: Vector3, altitude: float = 0.0) -> void:
    var d := dir.normalized()
    node.global_position = planet.global_position \
        + d * (planet.ground_radius_at(d) + altitude)
    node.look_at(node.global_position + d.cross(Vector3.UP), d)  # up = radial
